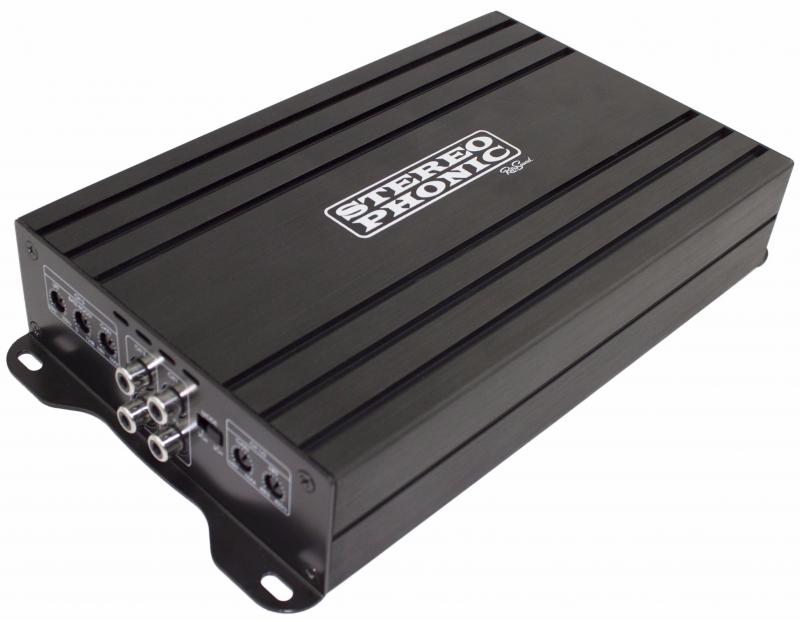

This unique 3-channel amplifier has two 65 watt RMS full-range front channels for mids and highs – plus a mono channel with up to 229 watts (2 ohms) for a subwoofer – allowing a complete audio system to be built using a single Stereophonic amplifier. Low-level RCA inputs allow Stereophonic to work with any aftermarket radio with RCA outputs. Stereophonic is bridgeable and 4 ohm and 2 ohm stable. Stereophonic offers exceptional dynamic range for the best possible sound reproduction from your RetroSound® audio system. The full-range channels have a high-pass crossover for use with full-range speakers. The mono channel has a low-pass crossover to fine tune the bass frequencies for use with a subwoofer. A selectable input mode allows switching between 2 and 3 channel operation.Stereophonic also features low current draw and Class D Digital circuitry. With exceptional dynamic range and low distortion, you'll get the best possible sound from your audio system.
Download Name | File Size |
stereophonic_manual-06-2016.pdf | 801.48KB |
Bass Boost | 0-12dB @ 50Hz |
Crossover Slope | 24dB |
Dimensions (inches) | 9.4” W x 5.3” D x 1.87” H |
Dimensions (mm) | 240mm W x 134mm D x 47.5mm H |
Full-Range Frequency Response | 40Hz - 65KHz |
Full-Range Power Output @ 2 ohms | 90 watts RMS x 2 channels @ 2 ohms |
Full-Range Power Output @ 4 ohms | 65 watts RMS x 2 channels @ 4 ohms |
Fuse* (fuse door on bottom of amplifier) | 30 amp ATC Style |
High Pass Filter (HPF) Frequency Range | 40Hz - 400Hz |
Input Sensitivity | 200mV - 6.0 volts |
Low Pass Filter (LPF) Frequency Range | 50Hz - 250Hz |
Signal to Noise Ratio (EIA rated) | >95dB |
Subwoofer Frequency Response | 24Hz - 250Hz |
Subwoofer Power Output @ 2 ohms | 229 watts RMS x 1 channel @ 2 ohms |
Subwoofer Power Output @ 4 ohms | 170 watts RMS x 1 channel @ 4 ohms |
