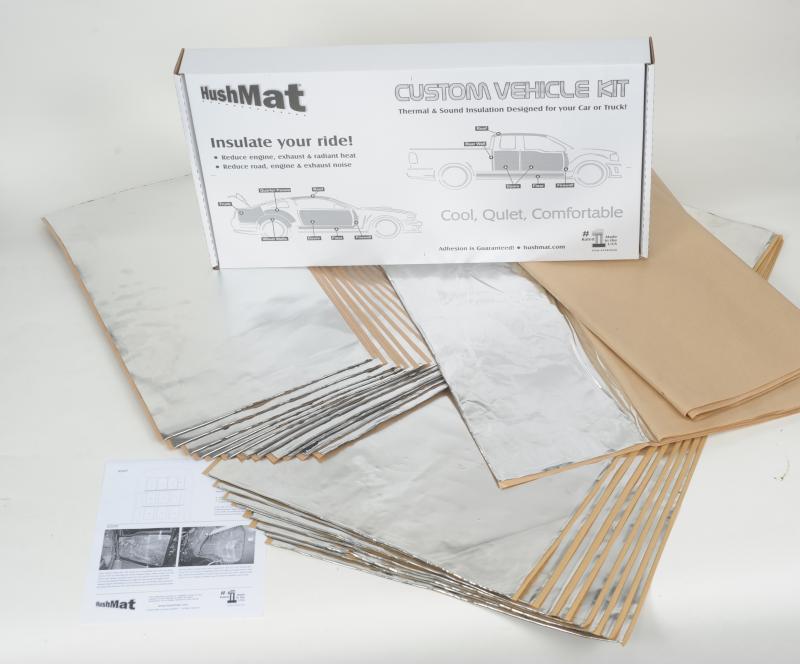

Hushmat Complete Year, Make and Model Vehicle Insulation kit covers 100 percent of the area of your vehicles firewall, floor, doors, roof and trunk. HushMat has determined the exact amount of material required for your vehicle.
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material, light weight HushMat Ultra.
The Porsche 911, the two door, high performance classic that every car builder attempts to match and most fall short. The rear mounted powerplant, aerodynamic body and low to the road design create noise and heat in the interior making even a short drive uncomfortable. It is nearly impossible to hold a phone conversation while on the road in the 911. While the 911 has undergone numerous development modifications over the years, the noise and heat problem in the vehicle remains, until HushMat came along. HushMat?s light weight sound deadening and thermal insulation material is designed to bond to the floor pan, firewall, tunnel, doors, roof and also the forward trunk. HushMat?s self-adhesive material forms and molds to the uneven sheet metal insulates 100 percent of the vehicle. HushMat has done the extensive work to measure and package pre-sized kits for your 911. HushMat trims easily with household scissors or a box knife. If you have modified any section of the original sheet metal Hushmat can be easily trimmed to fit. HushMat is available in either Stealth Black foil or Silver Aluminum foil. Both work and perform exactly the same.
Download Name | File Size |
HushMat Ultra Specification Sheet.pdf | 149.54KB |
HushMat_Ultra 200-400-800 Hz Graph SAEJ1637.pdf | 23.13KB |
HushMat_Sell Sheet_CustomVehicleKit_FINAL.pdf | 1.07MB |
Hushmat Install Guide 1932 Ford Coupe.pdf | 1.85MB |
Damping Pad MSDS.pdf | 26.43KB |
Make | Model | Years |
Porsche | 911 | 1974 - 1977 |
Cold Flexibility | Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion |
Color | Polymer - Black; Backing - Silver |
Flammability | Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard |
Hardness | 6.5 - 9.0mm ?ASTM D-5 |
Part Type | Thermal Acoustic Insulation |
Peel Strength | Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported. |
R-Value | 7 |
Safety | HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product. |
Shelf Life | At least 6 months when stored at 40 degrees C or less |
Specific Gravity | 1.47 (approx. 0.47 pounds per square foot) |
Temperature Resistance | HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions. |
Thickness | 1.5mm |
Warranty | Seller warrants marketable title to the Product, free and clear of all liens and encumbrances. Seller makes no other express or implied warranties beyond that stated on quoted product, statutory or otherwise. |
