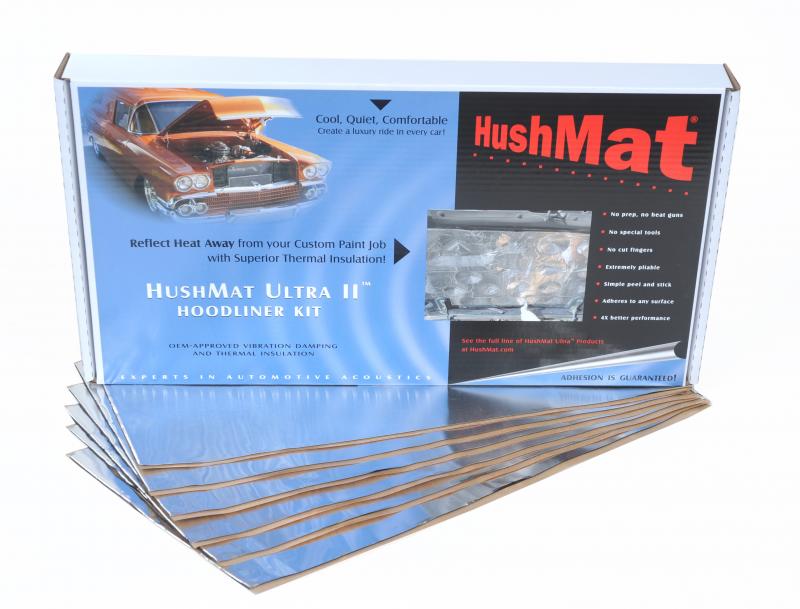

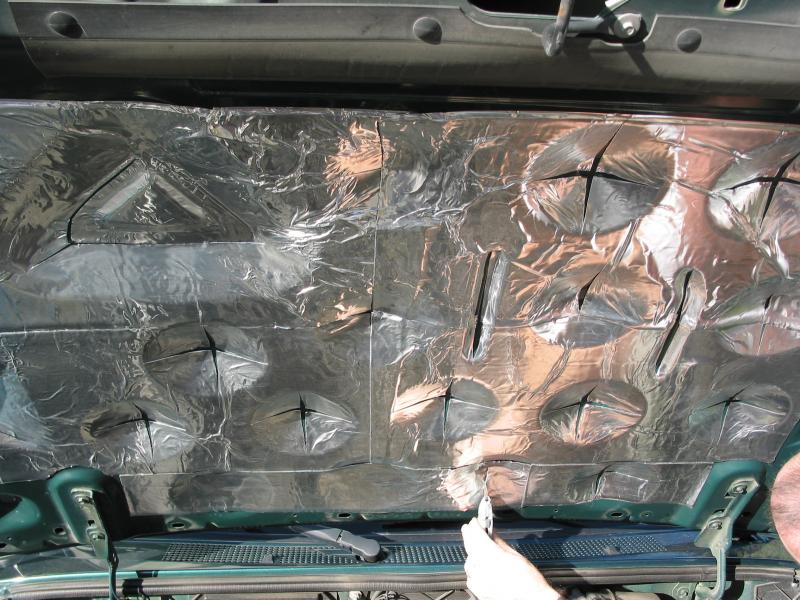

Hoodliner contains six 12 in. x 23 in. Engine Side Rugged Ultra Heat Reflective Pads. Hoodliner insulates the hood and firewall from excessive engine and exhaust heat.
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material light weight HushMat Ultra
HushMat Hoodliner is a robust formulation designed for the rugged and high temperature engine side environments. HushMat Hoodliner is rated from minus 30 degrees F to plus 550 degrees F.
|Install Universal Hoodliner.pdf
|HushMat Ultra II Hoodliner Specification Sheet.pdf
|Damping Pad Hoodliner MSDS.pdf
|Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion
|Polymer - Black; Backing - Aluminum 4 Mil Silver
|Tested per FMVSS 302, HushMat Ultra Hoodliner is self-extinguishing and meets all aspects of the standard
|6.5 - 9.0mm ?ASTM D-5
|Hood Insulation Pad Set
|Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported.
|HushMat Ultra Hoodliner is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product.
|At least 6 months when stored at 40 degrees C or less
|1.47 (approx. 0.60 pounds per square foot)
|HushMat Ultra Hoodliner will withstand a bake of 1 hour at 290 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions.
|Seller warrants marketable title to the Product, free and clear of all liens and encumbrances. Seller makes no other express or implied warranties beyond that stated on quoted product, statutory or otherwise.
