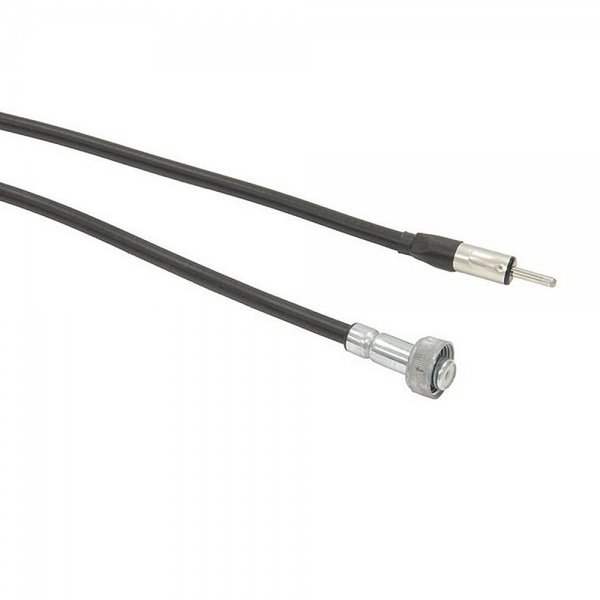

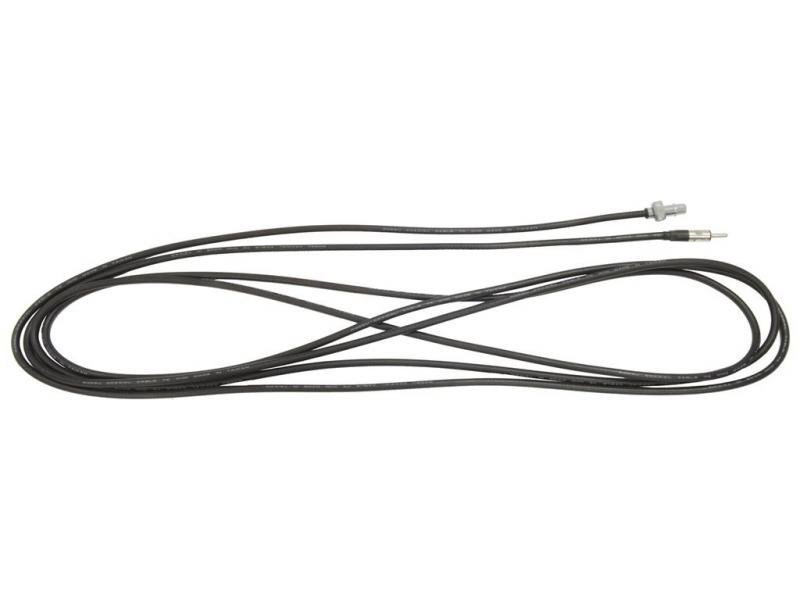

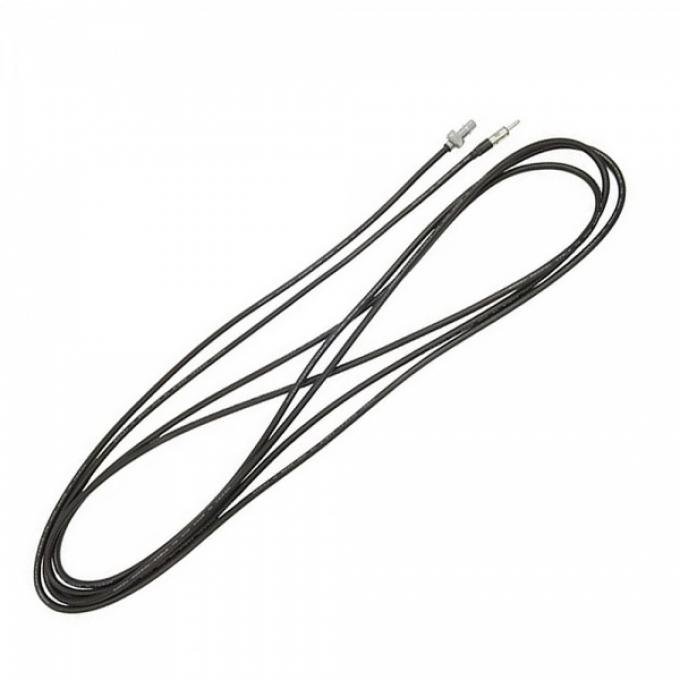

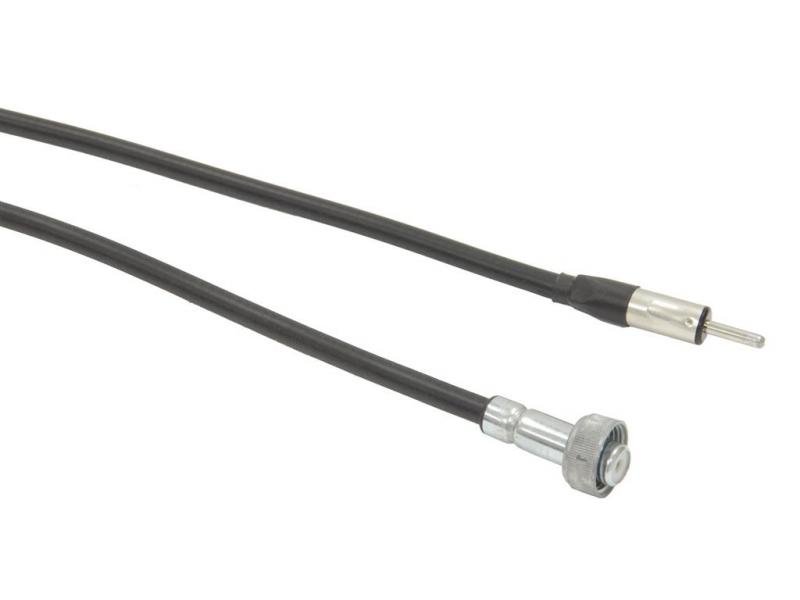

This antenna cable is 186 inches long.
It is made from RG62U coax cable.
There is a threaded collar on one end to connect to the antenna itself.
*Correct cast nut
*The other end has a normal male connector to the radio.
*The collar is 9/16 x 20 thread size
Note: These cables contain a series capacitor, which reduces the antenna system's capacitance. This causes the antenna system capacity to fall within a range acceptable to the Delco radio receiver.
Caution: DoNot pass any current through the antenna cable, as you may short out the capacitor, leaving the cable inoperative! (Continuity must be checked with an instrument that measures capacity, Not an Ohmmeter)
Once the cable is installed, removal may cause the female contact to become disengaged from the cable. In this occurs, carefully tuck the conductor wire and contact back in place. Do Not be alarmed by extra conductor wire, some slack is normally provided to allow for cables that are stretchedduring installation.
C1 CORVETTE RADIO AERIAL ANTENNAS CABLES 162002
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1956 - 1962 |
